ORM Models for restful APIs

I wrote a nifty class which wraps URLLib behind an interface for RESTful web services. The result is a set of one-liners that can be used to import data from compatible APIs.

The goal of this project is to easily import and process data from disparate APIs without needing to read thousands of pages of poorly written documentation. Just import the models you need and hit the ground running.

Think of it as Yahoo Pipes, but local and in Python instead of a graphical programming language.

Processing Chaos

After reading the wonderful Chaos (James Gleik), I was inspired to pick up a copy of The Computational Beauty of Nature (Gary Flake) and explore chaotic computation for myself! My tool of choice was Processing, a simplified yet powerful programming language built on Java.

I began this endeavor by exploring the Mandelbrot set with Zlata over the MIT Spark weekend. In the wee hours of Sunday morning, the first grainy images of the Mandelbrot set came into view. Uplifted by this success, we toiled tirelessly to create a full color, zoomable, and downright awesome fractal generator.

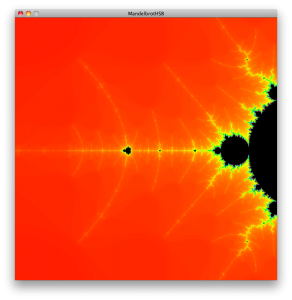

One of the best renderings from our Mandelbrot generator.

View Demo

Adding color was one of the toughest challenges we encountered. The standard RGB color notation is great for most purposes, but it really does fall short for generating the spectrum. In order to more easily generate a smooth color spectrum, we switched the project to HSL color and were able to simply scale the “H” (hue) property with each point’s iteration count.

Another interesting problem which still exists as a “bug” in the demo applet above is the lower limit imposed by the floating point datatype. As you zoom in farther and farther, the coordinates shrink down to absurdly small and precise values. Eventually, the measly floating point becomes imprecise, and the display seems pixelated. An easy fix would be switching all datatypes to doubles or bignums, but that would just take too much effort. It works!

Next I tackled the Lorenz Attractor. One of many such “strange attractors” that visualize the changes in a dynamic system by plotting the system’s state in “system space.” In the case of the Lorenz Attractor, fluid convection is represented in 3-space by the following set of equations:
From hypertextbook.com:
dx/dt = σ(y − x)
dy/dt = ρx − y − xz
dz/dt = xy − βz

As stated above, “x” is the convective flow, “y” is the horizontal temperature distribution, and “z” is the vertical temperature distribution of the system. Curiously, the orbit of point (x,y,z) over time will not “settle down” or form a repetitious cycle given certain critical values for σ, ρ, and β. Instead, the orbit forms a magnificent, infinitely complex object known as a strange attractor.

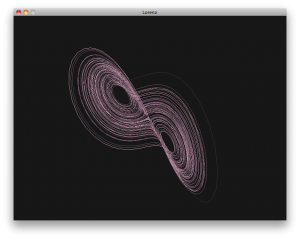

The Lorenz Attractor

View Demo

Bresenham’s Line Algorithm

Bresenham’s line algorithm is the best known way to render a continuous and straight line through a raster display. I started out allowing floating point operations, but quickly decided to implement the algorithm using only integers. I didn’t like the online explanations and tutorials of the algo, so I decided to write something that I conceptually understood. View my code here.

My algorithm works by increasing an “error” variable by y0 – y1 every iteration. Should the error ever rise above x0-x1, the error is decreased by x0 – x1 and the drawn Y value is increased by 1.
